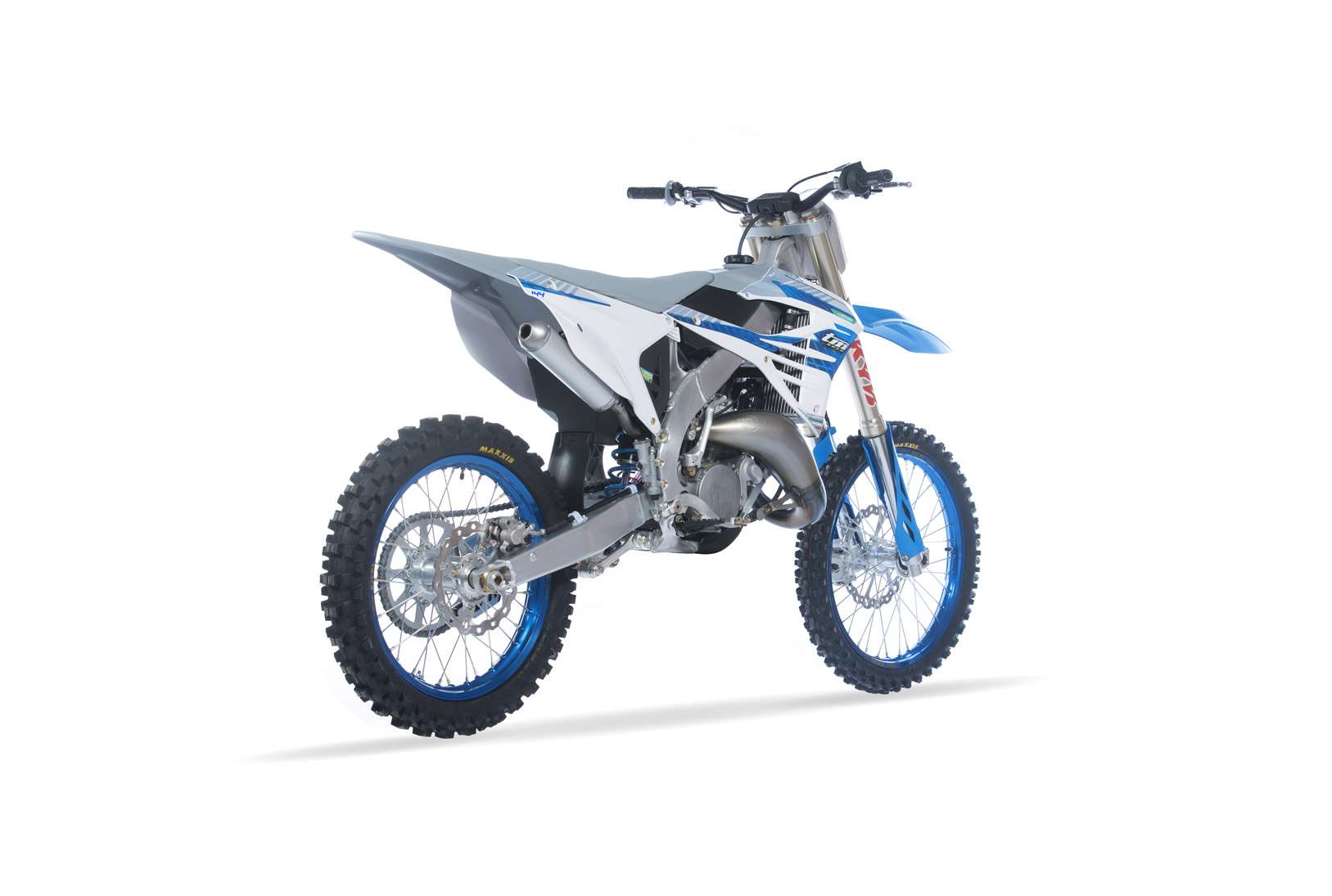

TM MX 144 2T

This model is a particular favourite of motocross fans.

Like all the MY 2023 bikes, it has been completely overhauled in terms of design and production.

A turning point that designated the realization of years of experimentation and research.

TM MX 144 2T

This model is a particular favourite of motocross fans.

Like all the MY 2023 bikes, it has been completely overhauled in terms of design and production.

A turning point that designated the realization of years of experimentation and research.

TM MX 144 2T

This model is a particular favourite of motocross fans.

Like all the MY 2023 bikes, it has been completely overhauled in terms of design and production.

A turning point that designated the realization of years of experimentation and research.

TECHNICAL DETAILS

CHANGE6 marce
STARTINGA pedale
RUN58.2 mm
ALESAGE56 mm
CLUTCHOil-bath multi-disc
CILINDRATE143.3 cm3
ECUKokusan
CORPO FARFALLATO---
CARBURATORKeihin
WEIGHT (WITHOUT GASOLINE)91 Kg
TANK CAPACITY (APPROX.)9.0 Lt / 12 Lt
FRONT BRAKE DISK DIAMETER270 mm
REAR BRAKE DISK DIAMETER245 mm
FRONT BRAKE CALIPERBrembo
REAR BRAKE CALIPERNissin
CHAINRegina GPX
FRAME CONSTRUCTIONSelf-tempering aluminium deltabox type single beam with extruded, forged and microcast parts
FRONT SUSPENSIONKayaba Ø 48 mm
MINIMUM HEIGHT FROM GROUND37 cm
REAR SUSPENSIONTM Racing
SEAT HEIGHT FROM GROUND99 cm
STEERING HEAD INCLINATION63°
FRONT EXCURSION310 mm
REAR EXCURSION300 mm

The vehicles shown in the images may differ in some details from the production models and mount optional available only for a fee. All information relating to the volume of supply, appearance, services, weights and dimensions are not binding and are specified subject to typographical, compositional and printing errors. In the case of coated surfaces, there may be color differences due to normal process deviations. Subject to change without notice. The consumptions indicated refer to standard vehicles approved for road use at the time of delivery.
