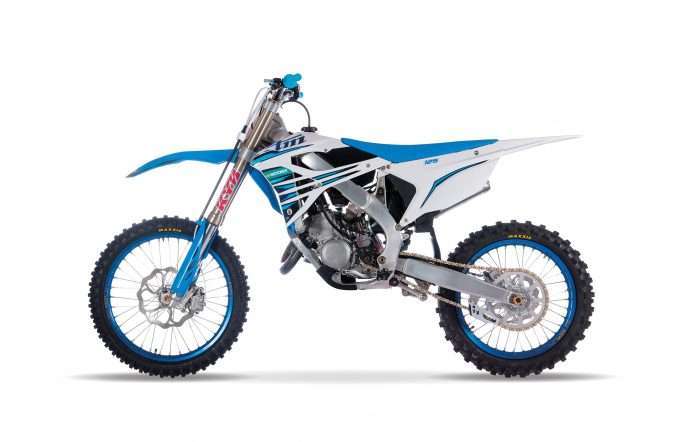

TM MX 125 2T (2022)

The story of TM Racing began with this motorbike, and since then we have never looked back. We have continued to design, evolve, research, in order to make the engine higher and higher performing, and the bike more and more competitive in general.

This is a real icon in our history, and it is thanks to this bike that everything started.

2022 Models

TM MX 125 2T (2022)

The story of TM Racing began with this motorbike, and since then we have never looked back. We have continued to design, evolve, research, in order to make the engine higher and higher performing, and the bike more and more competitive in general.

This is a real icon in our history, and it is thanks to this bike that everything started.

2022 Models

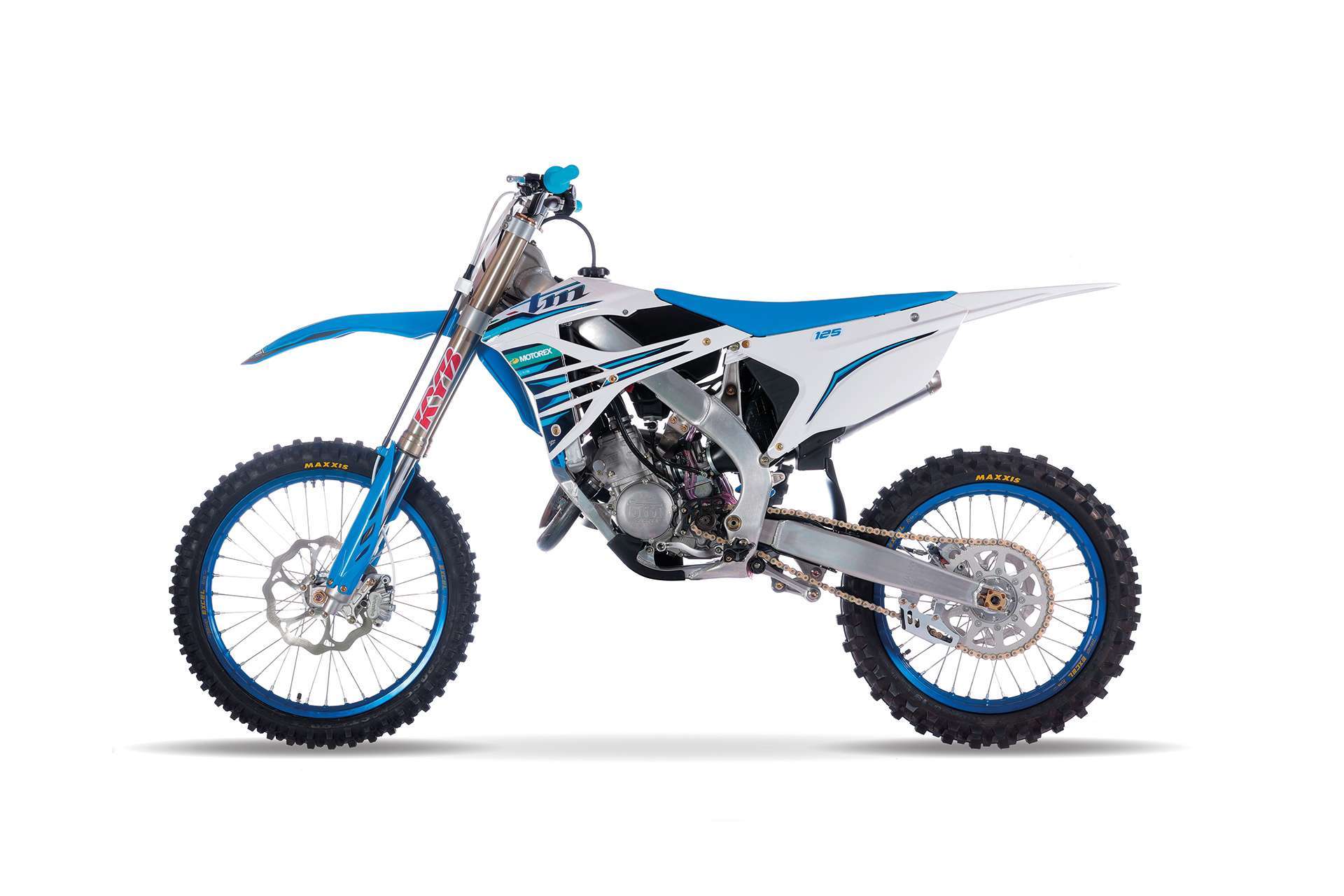

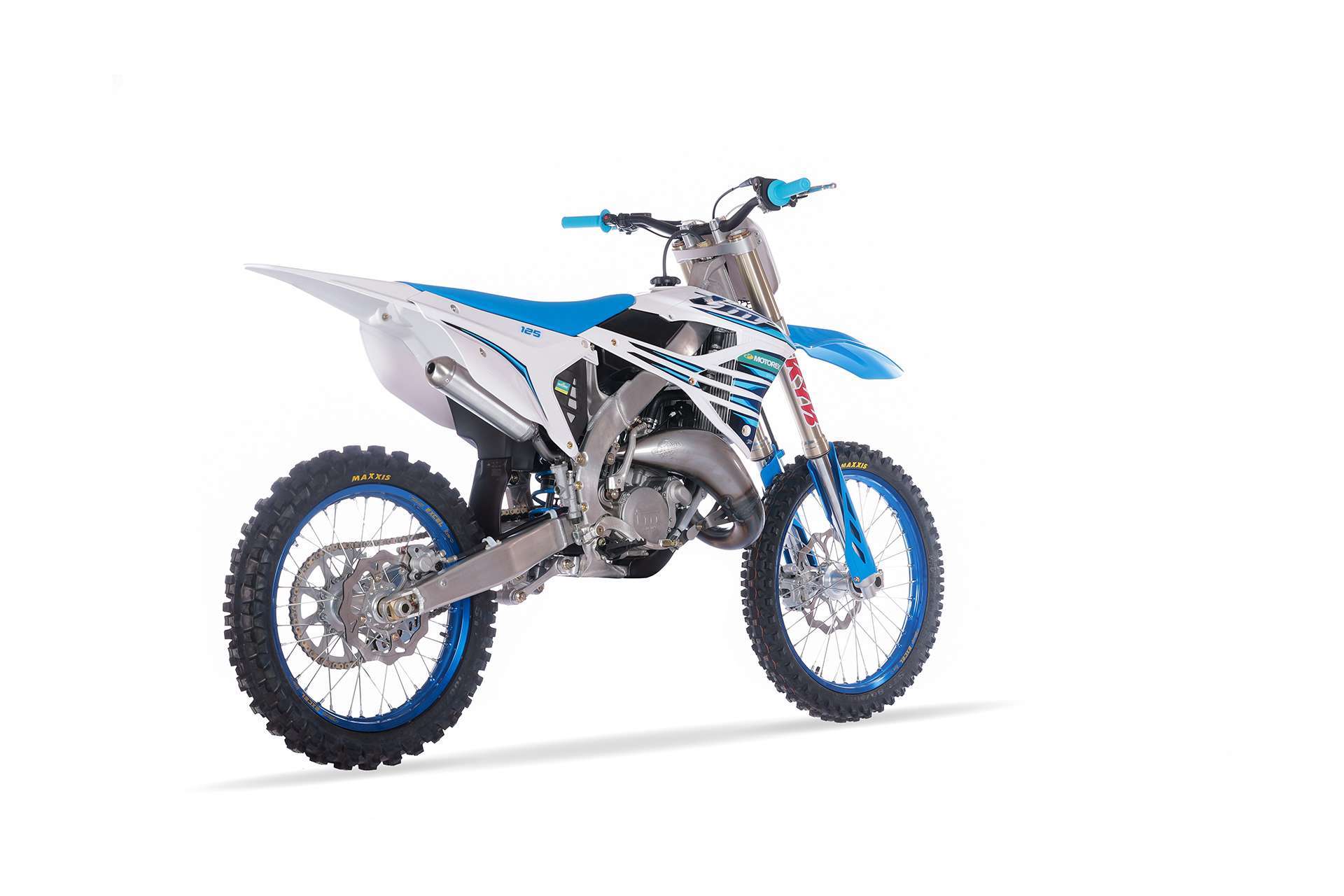

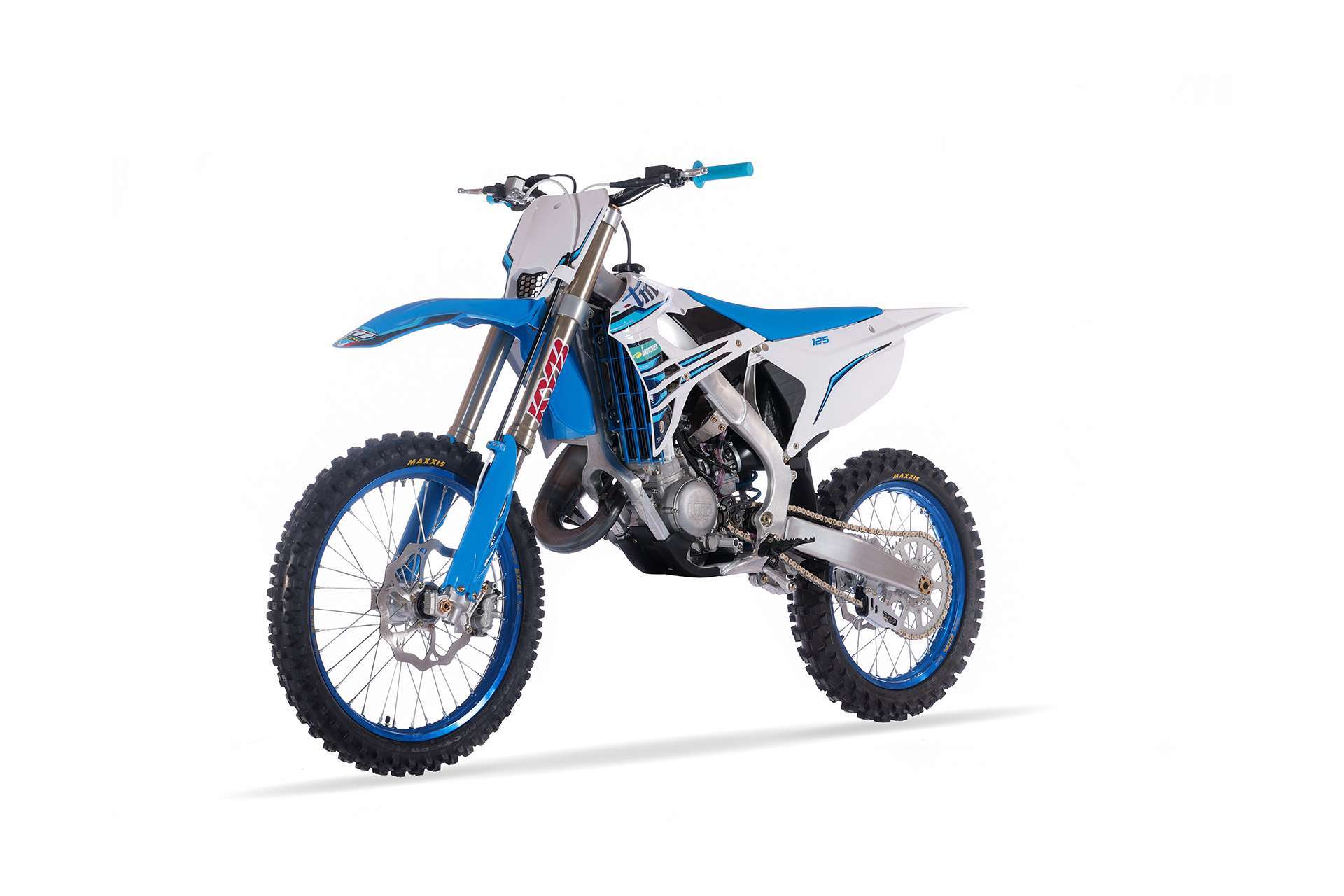

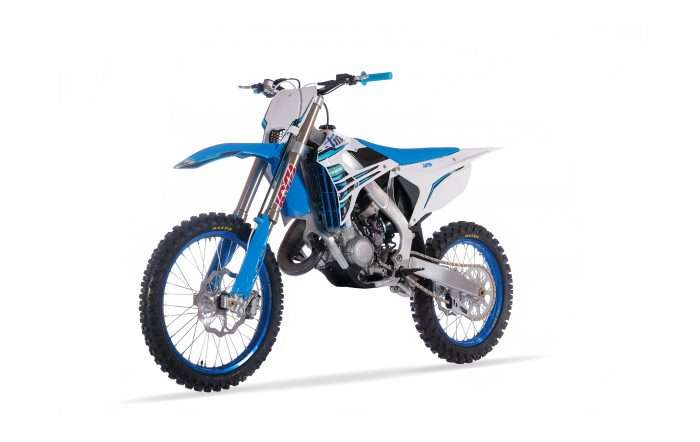

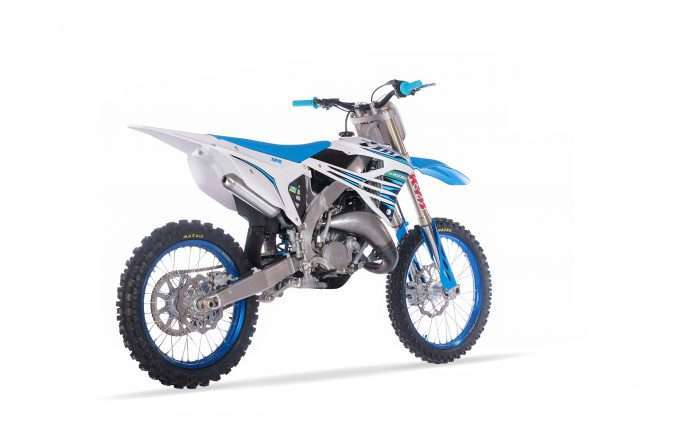

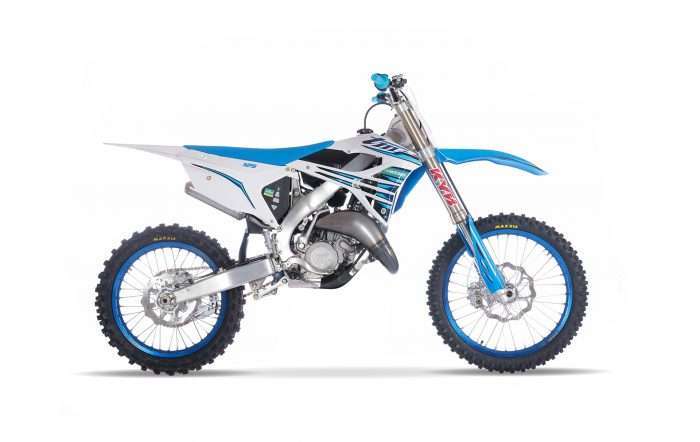

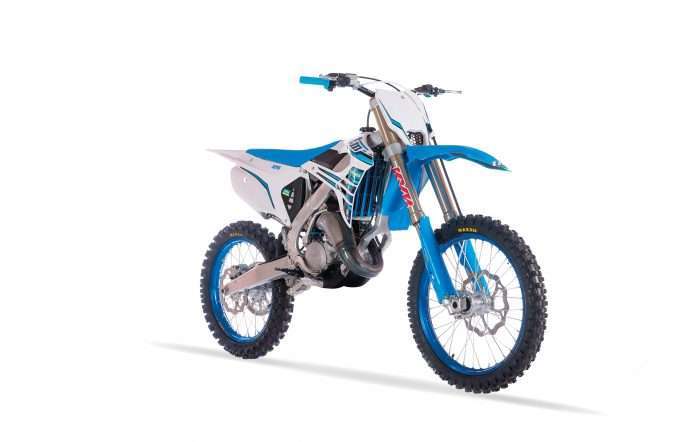

TM MX 125 2T (2022)

The story of TM Racing began with this motorbike, and since then we have never looked back. We have continued to design, evolve, research, in order to make the engine higher and higher performing, and the bike more and more competitive in general.

This is a real icon in our history, and it is thanks to this bike that everything started.

TECHNICAL DETAILS

CHANGE6 marce
STARTINGA pedale
RUN54 .5 mm
ALESAGE54 mm
CLUTCHOil-bath multi-disc
CILINDRATE124.8 cm3
ECUKokusan
CORPO FARFALLATO---
CARBURATORKeihin
WEIGHT (WITHOUT GASOLINE)96 Kg
TANK CAPACITY (APPROX.)8.5 Lt / 12 Lt
FRONT BRAKE DISK DIAMETER270 mm
REAR BRAKE DISK DIAMETER245 mm
FRONT BRAKE CALIPERBrembo
REAR BRAKE CALIPERNissin
CHAINRegina GPX
FRAME CONSTRUCTIONSelf-tempering aluminium deltabox type single beam with extruded, forged and microcast parts
FRONT SUSPENSIONKayaba Ø 48 mm
MINIMUM HEIGHT FROM GROUND37 cm
REAR SUSPENSIONTM Racing
SEAT HEIGHT FROM GROUND99 cm
STEERING HEAD INCLINATION63°
FRONT EXCURSION310 mm
REAR EXCURSION300 mm

The vehicles shown in the images may differ in some details from the production models and mount optional available only for a fee. All information relating to the volume of supply, appearance, services, weights and dimensions are not binding and are specified subject to typographical, compositional and printing errors. In the case of coated surfaces, there may be color differences due to normal process deviations. Subject to change without notice. The consumptions indicated refer to standard vehicles approved for road use at the time of delivery.
