2022 Models

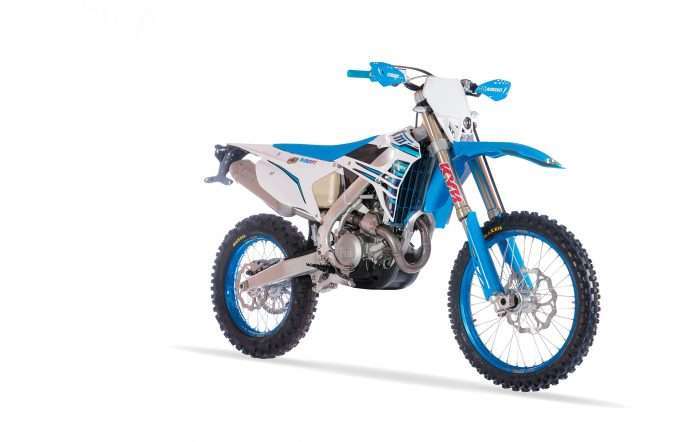

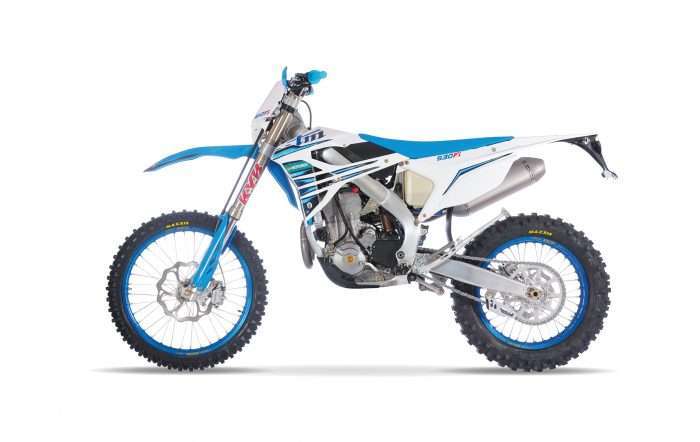

TM EN 530 Fi 4T (2022)

The 2022 models are the result of pioneering design that has been years in the making, and has reached its full expression this year.

Every detail of these bikes has been overhauled, from the smallest parts to the most sophisticated electronics.

2022 Models

TM EN 530 Fi 4T (2022)

The 2022 models are the result of pioneering design that has been years in the making, and has reached its full expression this year.

Every detail of these bikes has been overhauled, from the smallest parts to the most sophisticated electronics.

2022 Models

TM EN 530 Fi 4T (2022)

The 2022 models are the result of pioneering design that has been years in the making, and has reached its full expression this year.

Every detail of these bikes has been overhauled, from the smallest parts to the most sophisticated electronics.

TECHNICAL DETAILS

CHANGE5 marce
STARTINGElettrico
RUN70 mm
ALESAGE98 mm
CLUTCHOil-bath multi-disc
CILINDRATE528 cm3
ECUeMoticom
CORPO FARFALLATOTM Racing
CARBURATOR---
WEIGHT (WITHOUT GASOLINE)115 Kg
TANK CAPACITY (APPROX.)7.5 Lt
FRONT BRAKE DISK DIAMETER270 mm
REAR BRAKE DISK DIAMETER245 mm
FRONT BRAKE CALIPERBrembo
REAR BRAKE CALIPERNissin
CHAINRegina ZSA
FRAME CONSTRUCTIONSelf-tempering aluminium deltabox type single beam with extruded, forged and microcast parts
FRONT SUSPENSIONKayaba Ø 48 mm
MINIMUM HEIGHT FROM GROUND36 cm
REAR SUSPENSIONTM Racing
SEAT HEIGHT FROM GROUND100 cm
STEERING HEAD INCLINATION63°
FRONT EXCURSION310 mm
REAR EXCURSION300 mm

The vehicles shown in the images may differ in some details from the production models and mount optional available only for a fee. All information relating to the volume of supply, appearance, services, weights and dimensions are not binding and are specified subject to typographical, compositional and printing errors. In the case of coated surfaces, there may be color differences due to normal process deviations. Subject to change without notice. The consumptions indicated refer to standard vehicles approved for road use at the time of delivery.
