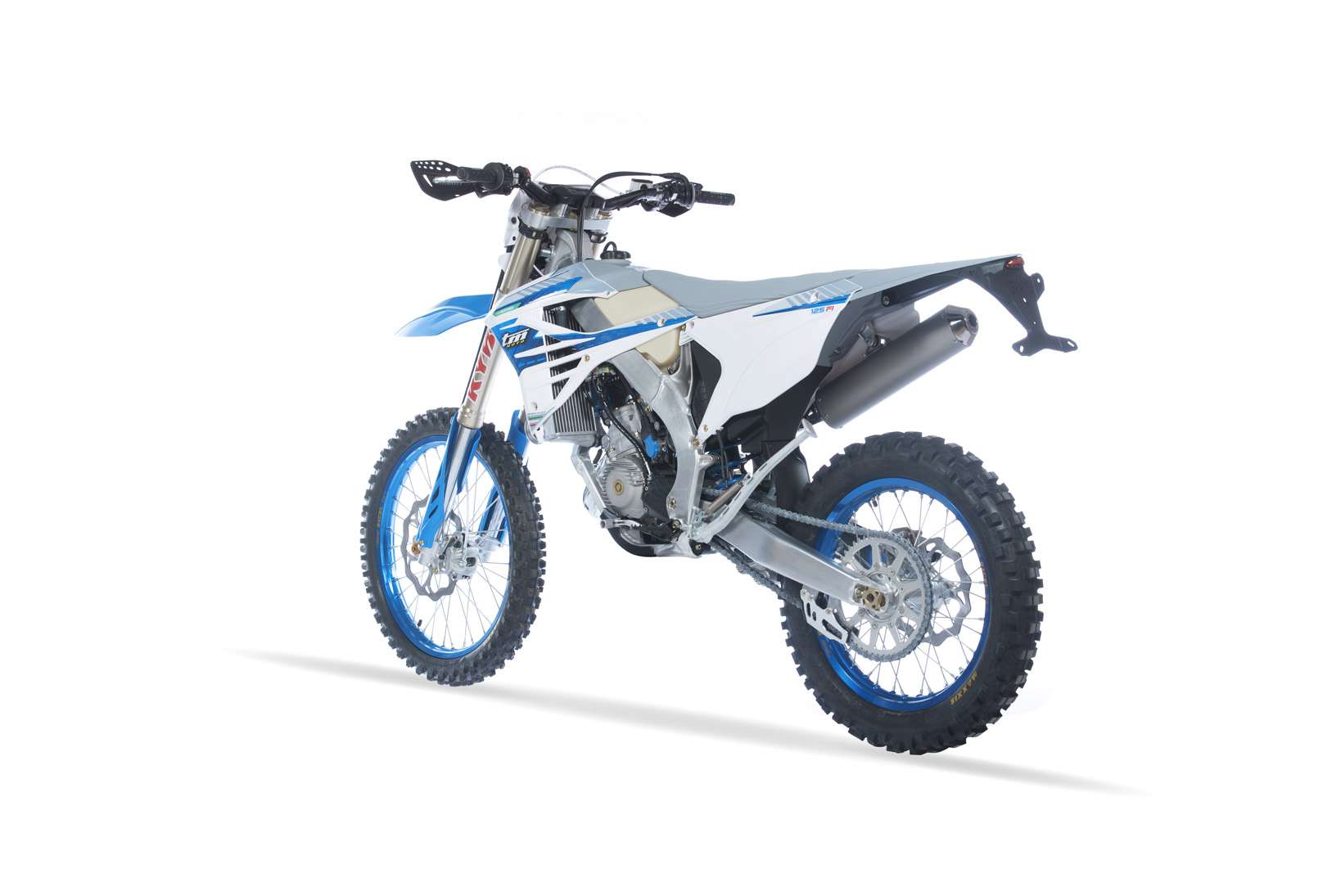

TM EN 125 Fi 2T

This motorbike is the first enduro model in the world to take advantage of electronic fuel injection.

It is the result of years of study and research, which has allowed TM Racing to break a significant record. But this bike is not revolutionary only because it is the first 125 cc model with Euro 5 approved fuel injection. Like all of the 2023 models, it is the result of a radical overhaul in all areas, in terms of the design and parts.

It has an aluminium perimeter frame, and, like the entire 2-stroke range, has a separate mixer.

TM EN 125 Fi 2T

This motorbike is the first enduro model in the world to take advantage of electronic fuel injection.

It is the result of years of study and research, which has allowed TM Racing to break a significant record. But this bike is not revolutionary only because it is the first 125 cc model with Euro 5 approved fuel injection. Like all of the 2023 models, it is the result of a radical overhaul in all areas, in terms of the design and parts.

It has an aluminium perimeter frame, and, like the entire 2-stroke range, has a separate mixer.

TM EN 125 Fi 2T

This motorbike is the first enduro model in the world to take advantage of electronic fuel injection.

It is the result of years of study and research, which has allowed TM Racing to break a significant record. But this bike is not revolutionary only because it is the first 125 cc model with Euro 5 approved fuel injection. Like all of the 2023 models, it is the result of a radical overhaul in all areas, in terms of the design and parts.

It has an aluminium perimeter frame, and, like the entire 2-stroke range, has a separate mixer.

TECHNICAL DETAILS

CHANGE6 marce
STARTINGA pedale
RUN54.5 mm
ALESAGE54 mm
CLUTCHOil-bath multi-disc
CILINDRATE124.8 cm3
ECUeMoticom
CORPO FARFALLATOTM Racing
CARBURATOR---
WEIGHT (WITHOUT GASOLINE)96 Kg
TANK CAPACITY (APPROX.)8.5 Lt / 12 Lt
FRONT BRAKE DISK DIAMETER270 mm
REAR BRAKE DISK DIAMETER245 mm
FRONT BRAKE CALIPERBrembo
REAR BRAKE CALIPERNissin
CHAINRegina GPX
FRAME CONSTRUCTIONSelf-tempering aluminium deltabox type single beam with extruded, forged and microcast parts
FRONT SUSPENSIONKayaba Ø 48 mm
MINIMUM HEIGHT FROM GROUND37 cm
REAR SUSPENSIONTM Racing
SEAT HEIGHT FROM GROUND99 cm
STEERING HEAD INCLINATION63°
FRONT EXCURSION310 mm
REAR EXCURSION300 mm
